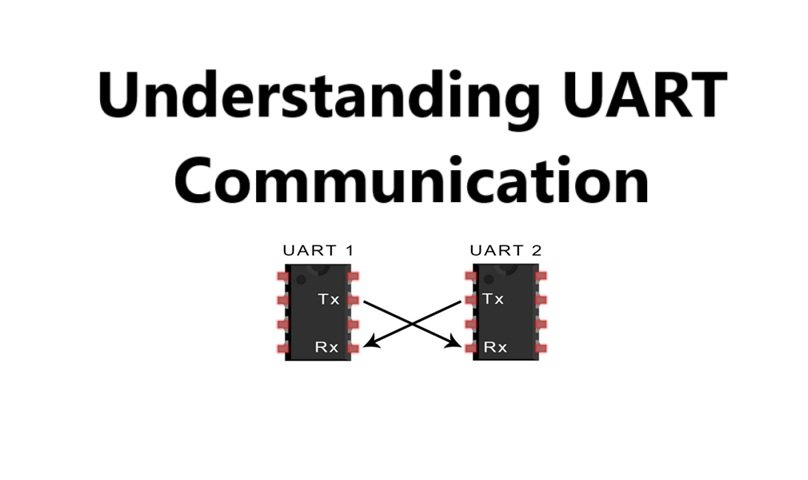

Understanding UART Communication
Introduction
Universal Asynchronous Receiver/Transmitter (UART) is a widely used serial communication protocol that allows data exchange between two devices. Unlike synchronous communication, UART does not require a shared clock between devices, making it a simple and cost-effective method for data transmission. This article provides an in-depth understanding of UART communication, its working principle, advantages, disadvantages, and applications.
How UART Works
UART communication involves two primary components:
- Transmitter (TX): Converts parallel data into a serial stream and transmits it bit by bit.
- Receiver (RX): Converts the received serial data back into a parallel format.
Data is transferred in packets containing specific components:
- Start Bit: A single low (0) bit that indicates the start of data transmission.
- Data Bits: Typically 5 to 9 bits representing the actual data.
- Parity Bit (Optional): Used for error detection (Even/Odd parity or no parity).
- Stop Bit(s): One or two high (1) bits signaling the end of a data packet.
Unlike SPI or I2C, UART does not require a master-slave architecture. Instead, it operates on a point-to-point basis, meaning that two devices can communicate directly through TX and RX lines.
UART Communication Parameters
To ensure proper communication, both devices must share the same parameters:
- Baud Rate: The transmission speed in bits per second (bps). Common values include 9600, 115200, etc.
- Data Frame: Number of data bits per transmission (typically 8 bits).
- Parity Bit: Used for error checking.
- Stop Bits: Define the end of a transmission (1 or 2 bits).
UART Data Transmission Process
- The sender loads data into the transmit buffer.
- The UART module converts the data into a serial format.
- The TX line sends data asynchronously.
- The receiver detects the start bit and begins reading the incoming bits.
- The received data is converted back into a parallel format and stored in the receive buffer.
- The stop bit marks the end of the transmission.
Advantages of UART
- Simple Implementation: Requires only two wires (TX and RX).
- No Clock Synchronization: Eliminates the need for an external clock signal.
- Error Checking: Parity bits help detect data corruption.
- Low Power Consumption: Ideal for embedded systems and low-power devices.
Disadvantages of UART
- Limited Data Rate: Compared to SPI or I2C, UART has slower communication speeds.
- Short Distance Communication: Effective only for short-range communication.
- No Multi-Device Support: Supports only two devices at a time without additional hardware.
UART vs Other Communication Protocols
| Feature | UART | SPI | I2C |
|---|---|---|---|
| Wires Required | 2 (TX, RX) | 4 (MOSI, MISO, SCLK, SS) | 2 (SDA, SCL) |
| Speed | Slow | Fast | Moderate |
| Multi-Device Support | No | Yes | Yes |
| Clock Required | No | Yes | Yes |
Applications of UART
- Embedded Systems: Used in microcontrollers like ESP8266, Arduino, and Raspberry Pi for serial communication.
- Debugging: Commonly used for debugging firmware via serial monitors.
- GPS Modules: Communication with GPS receivers.
- Bluetooth & Wi-Fi Modules: Used in communication with wireless modules like HC-05 and ESP8266.
- Industrial Automation: Serial communication between controllers and sensors.
Conclusion
UART remains a fundamental serial communication protocol widely used in embedded systems and electronics. While it has some limitations, its simplicity and reliability make it a preferred choice for many applications. Understanding UART communication helps in designing and troubleshooting embedded systems effectively.
