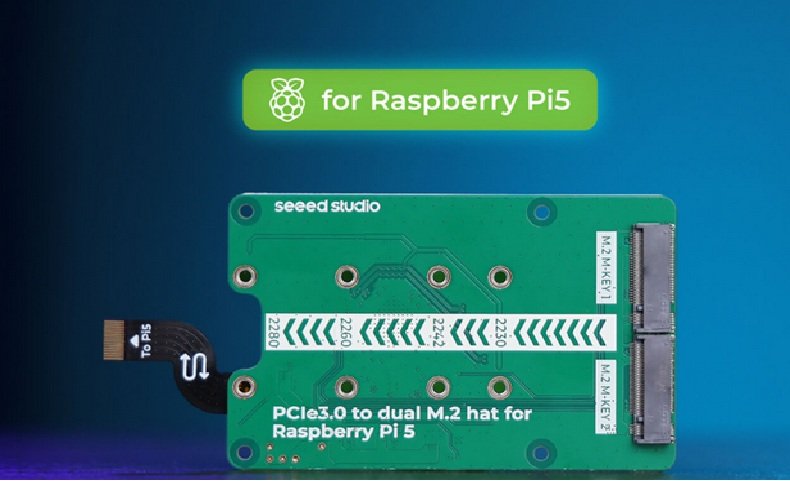

PCIe 3.0 Switch to Dual M.2 HAT for Raspberry Pi 5
The Raspberry Pi 5 introduces a groundbreaking improvement over its predecessors by incorporating a PCIe 3.0 interface, unlocking powerful expansion possibilities. One of the most notable accessories for leveraging this capability is the PCIe 3.0 Switch to Dual M.2 HAT, designed to enable NVMe SSD storage and AI acceleration using Hailo-8 or Hailo-8L AI modules.
This article delves into the features, specifications, and applications of the PCIe 3.0 Switch to Dual M.2 HAT, detailing how it enhances the functionality of the Raspberry Pi 5 for high-performance applications.
Features
- Dual M.2 Slots: Supports two M.2 NVMe SSDs or one NVMe SSD and one AI accelerator module (Hailo-8/Hailo-8L).
- PCIe 3.0 x1 Lane Interface: Provides high-speed connectivity to Raspberry Pi 5 via the PCIe FPC connector.
- PCIe Switch: Integrated PCIe switch chip allows multiple devices to share the single PCIe 3.0 lane available on Raspberry Pi 5.
- NVMe SSD Support: Enables high-speed storage for improved boot times and data processing efficiency.
- Hailo-8 / Hailo-8L AI Acceleration Support: Expands Raspberry Pi 5’s capability for AI inference applications, enhancing machine learning performance.
- Compact Form Factor: Designed to fit seamlessly with Raspberry Pi 5 while maintaining efficient heat dissipation.
- Efficient Power Management: Provides stable power distribution to connected M.2 devices.
Specifications
- PCIe Version: PCIe 3.0 (x1 lane from Raspberry Pi 5)
- M.2 Slot Support: 2x M.2 M-Key slots (supports 2230, 2242, and 2280 form factors)
- NVMe Protocol: PCIe-based NVMe SSDs supported
- AI Acceleration Support: Compatible with Hailo-8 (26 TOPS) and Hailo-8L (13 TOPS) AI modules
- Operating Voltage: 5V (Powered via Raspberry Pi 5)
- Power Consumption: Dependent on connected devices (NVMe SSDs and AI modules)
- Cooling Mechanism: Passive and active cooling solutions recommended for extended use
- Compatibility: Raspberry Pi 5 running Raspberry Pi OS or other Linux distributions with PCIe/NVMe support
Applications
1. High-Speed Storage Expansion
With NVMe SSD support, the PCIe 3.0 Switch to Dual M.2 HAT transforms the Raspberry Pi 5 into a high-performance storage solution, ideal for:
- Faster boot speeds and data access
- Large-scale data logging
- Edge computing applications requiring high-speed local storage
2. AI and Machine Learning Acceleration
The Hailo-8 and Hailo-8L AI accelerators enable real-time AI inference, making the Raspberry Pi 5 suitable for:
- Computer Vision: Object detection and recognition in industrial applications
- Edge AI: Processing AI models at the edge for IoT and robotics applications
- Smart Security Systems: AI-powered surveillance and anomaly detection
3. Home Server & NAS Applications
With dual NVMe SSDs, Raspberry Pi 5 can function as a low-power NAS (Network Attached Storage) or home server, enabling:
- High-speed file storage and sharing
- Self-hosted cloud solutions (Nextcloud, Seafile, etc.)
- Media streaming with Plex or Jellyfin
4. IoT and Industrial Applications
The combination of AI acceleration and high-speed storage makes the Raspberry Pi 5 with this HAT suitable for:
- Industrial automation and monitoring
- Smart city applications (traffic monitoring, pollution detection, etc.)
- AI-powered predictive maintenance
5. Gaming and Emulation
For retro gaming enthusiasts, NVMe SSDs significantly reduce loading times in emulation, and AI processing can enhance:
- AI-based upscaling of retro game graphics
- Smooth gameplay experience with better storage performance
Conclusion
The PCIe 3.0 Switch to Dual M.2 HAT expands the possibilities of the Raspberry Pi 5, making it more powerful for AI, storage, and high-performance computing applications. By supporting NVMe SSDs and AI acceleration modules like Hailo-8 and Hailo-8L, it enables users to build compact yet high-performance edge computing solutions.
For Raspberry Pi enthusiasts, developers, and AI researchers, this HAT unlocks the full potential of PCIe on Raspberry Pi 5, paving the way for cutting-edge applications in AI, storage, and IoT.
Source: https://www.seeedstudio.com/PCIe3-0-to-dual-M-2-hat-for-Raspberry-Pi-5-p-6358.html
